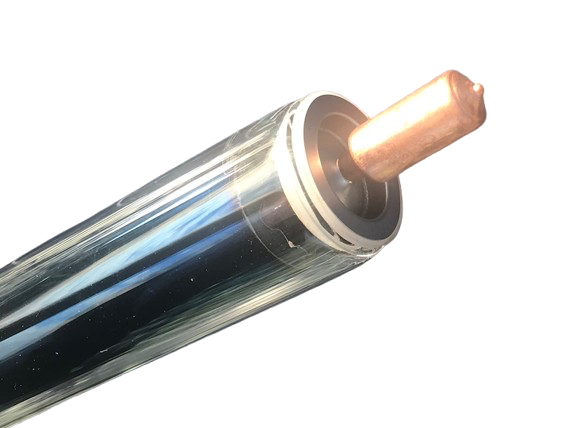

Evacuated Tube Solar Thermal Heat Pipes

SolarPeak industrial grade pure copper Powerful  heatpipes have Hi temp- Redseal insulated  plugs for durability and superior performance.These are the best available



Specifications:
Overall Length 1820mm
Outer Diameter 58mm
Inner Tube Inside Diameter 44mm
Inner Tube Outside diameter 47.5 mm and Copper Heat pipe Diameter 8mm
Copper Heat pipe overall length 1795 mm Copper Heat pipe transfer section Diameter 14mm or 20 mm
Copper Heat pipe Transfer section length 60mm-  Alloy heatfins included at 1.7m
Weight 2.1 kg

We also provide solar cylinders from 100-3000 litre mains pressure & any type & size low & medium pressure cylinders. Custom cylinder are available

Established in 2003 we are new Zealand’s most experienced technicians and can assist purchasers  for any installation enquiries – Accredited by SANZ  Solar Association of New Zealand.

SolarPeak Products are fully compliant: AS/NZS2535, AS/NZS2712 2007, and AS/NZS4234:2008
